Cleanroom Cable
| Specifications | Description |
|---|---|
| Speed | ~2.0m/sec |
| Acceleration | ~4G |
| Temperature range | -10°C~80°C |
| Specifications | e-PTFE insulated, Low Particle PVC |
| Inner width | 20mm |
| Bend radius | 40mm, 50mm, 70mm, 100mm |
| Service life | More than 10 million times |
| Certification | CE, IPA, UL |
*It may vary depending on cable and air tube configurations, stroke, speed and interference rate.

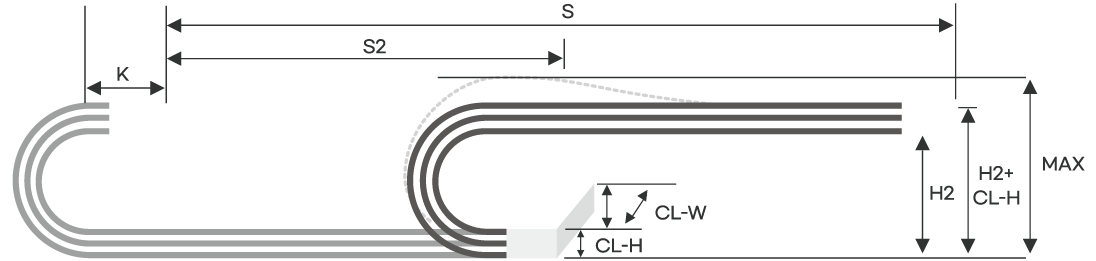

Dimensional Drawings
| S (mm) | S2 (mm) | H2 (mm) | H2+CL-H (mm) | K (mm) |
|---|---|---|---|---|
| Stroke | Stroke 1/2 | Installation height | Installation height + CL-H | Clamp safety value |
POD e-PTFE insulated, Low Particle PVC
| No. of POD | Overall width | POD inner width (mm) |
|---|---|---|
| 1 POD | 25 | 20 |
| 2 POD | 49 | |
| 3 POD | 72 | |
| 4 POD | 95 | |
| 5 POD | 118 | |
| 6 POD | 141 |
POD e-PTFE insulated, Low Particle PVC
| No. of POD | Overall width (mm) | POD inner width (mm) |
|---|---|---|
| 3 POD | 96 | 28 |
| 4 POD | 127 | |
| 5 POD | 158 |
Technical Data
| Rated voltage | AWG 26~11 : 30V AWG 20~16 : 300V / 600V AWG 14~ : 600V |
| Allowable temperature | 80°C |
| Bend radius | 7.5 x D (cable outside diameter) |
Color Chart
| No. of POD | Color Chart | |||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Core | 1 | 2 | 3 | 4 | 5 | 6 | ||||||||||||||||||||||||||||||||||||||
| Pair | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||||||||||||||||||||||||||||||||
| Cross-sectional diagram | Usage | Code | Standard |
|---|---|---|---|
 |
Power | A | 20x4C SB |
|
Power | B | 18x4C SB |
|
Power | D | 15x4C SB |
|
Power | P | 13x4C SB |
 |
Power & Brake | C | 20x6C SB |
 |
Encorder | E | 23x5P SB |
 |
Encorder | G | 22x3P SB |
 |
접지 | PE | AWG 12 |
 |
I/O | F | 20x4C SB |
 |
Air Tube 4π | A4 | 4π |
|
Air Tube 6π | A6 | 6π |
|
Air Tube 8π | A8 | 8π |
|
Air Tube 10π | A10 | 10π |
